For Levelise to optimise your battery and for you to view your data through our app, your Social Energy/Levelise Hub must be connected to the internet at all times.
There are several different ways that your system can connect to the internet, please see the information below to identify your connection type.
Powerline adaptors
Powerline adaptors (PLAs) enable your internet connection to be carried through your electrical circuit. You will have one adaptor plugged into an electrical wall socket near your internet router. This will be connected to your internet router via an ethernet cable.
You will have a second adaptor plugged into an electrical wall socket near your battery. This will be connected to your Social Energy/Levelise Hub via an ethernet cable.

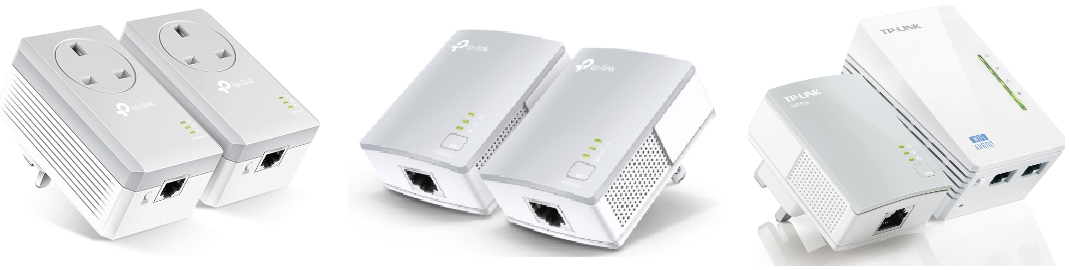

There are different types of PLAs available, here are some common ones.
If you are having a connection issue and you have powerline adaptors, please click here.
Direct connection (also known as a hardwire)

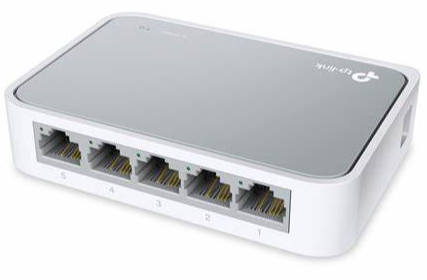

You will have a single ethernet cable that connects your Social Energy/Levelise Hub to your internet router. This connection may go via a network switch to allow additional devices to use the same connection. A typical network switch is shown below.
If you are having a connection issue and you have a direct connection, please click here.
Wi-Fi bridges

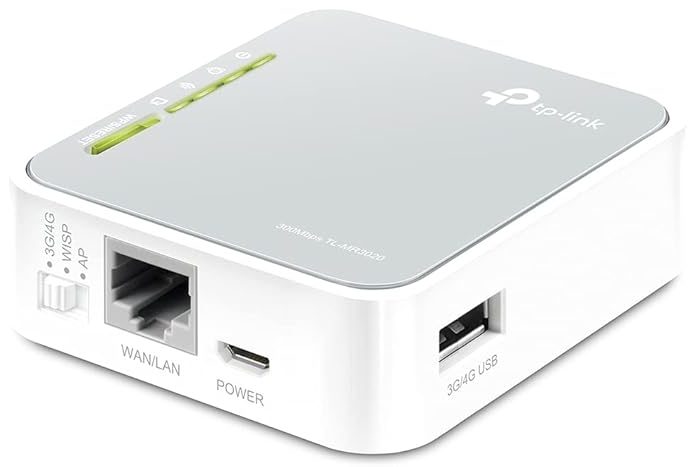

You may have one or two devices, each resembling the one shown below.
One Wi-Fi bridge
This will be connected to your Social Energy/Levelise Hub via an ethernet cable. The Wi-Fi bridge receives the internet signal via Wi-Fi and passes this to the Social Energy/Levelise Hub.
Two Wi-Fi bridges
One device will be connected to your internet router via an ethernet cable. The second device will be connected to your Social Energy/Levelise Hub via an ethernet cable. The Wi-Fi bridge attached to your internet router sends the internet signal via Wi-Fi to the second device which passes this to the Social Energy/Levelise Hub.
If you are having a connection issue and you have Wi-Fi bridges, please click here.
Wi-Fi extender
This will be connected to your Social Energy/Levelise Hub via an ethernet cable. The Wi-Fi extender receives the internet signal via Wi-Fi and passes this to the Social Energy/Levelise Hub.

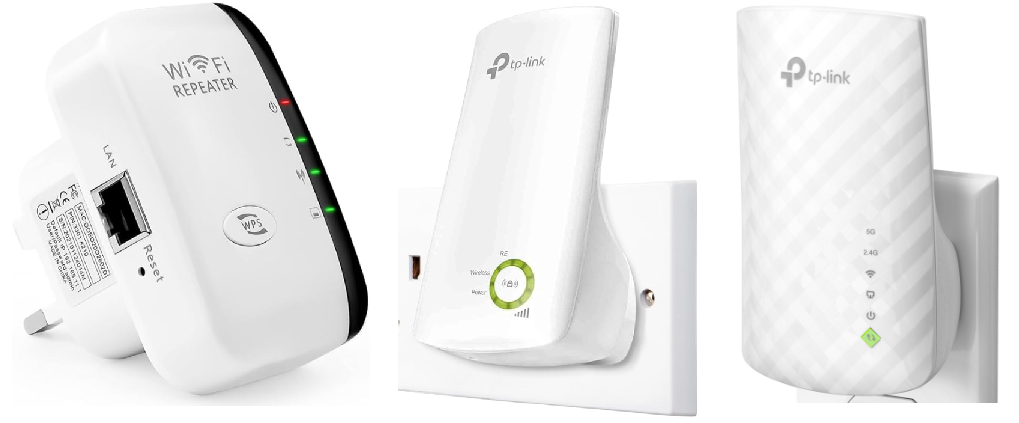

There are different types of Wi-Fi extenders available, here are some common ones.
If you are having a connection issue and you have a Wi-Fi extender, please click here.

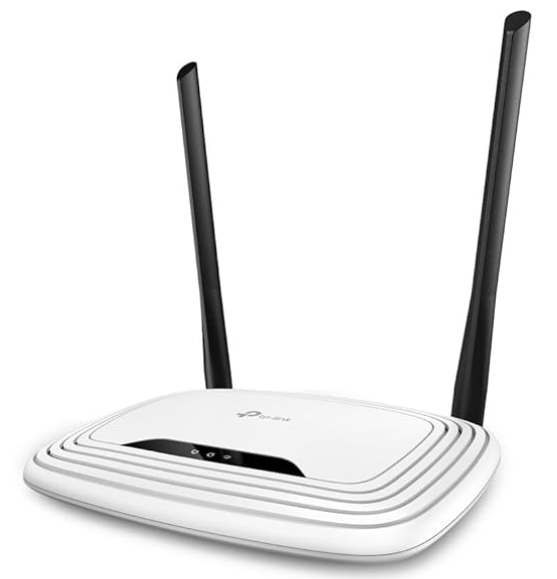

Wi-Fi router
This will be connected to your Social Energy/Levelise Hub via an ethernet cable. The Wi-Fi extender receives the internet signal via Wi-Fi and passes this to the Social Energy/Levelise Hub.
If you are having a connection issue and you have a Wi-Fi router, please click here.
Other
If none of the above connections methods seem to match what you can see, please take a photo of your Social Energy Hub, showing the connections underneath, and send this to support@levelise.com.
